PDT Droptest 700

Name: PDT Droptest 700
Brand: Rycobel
Availability: InStock
Rating: 4.5 (1 reviews)

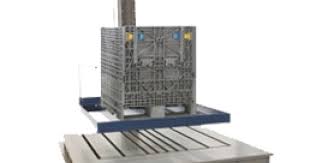

The Lansmont Model PDT 700 was designed to accommodate very large products and packages such as returnable bulk containers, crated products, or palletized products weighing up to 700 Kg. The PDT 700 establishes the upper end of Lansmont’s comprehensive Precision Drop Testing product offerings. The PDT 700 utilizes a welded steel dropping carriage, guided by precision ground quad-track bearing assemblies on a structural steel guide beam. The drop platform is raised and lowered by an electric hoist and released via an air actuator. During the drop test stage, the drop platform is accelerated downward, thereby allowing the test item to free fall while the drop platform descends into slots below the impact surface. Rebound of the drop platform is prevented by a hydraulic damper and by noise absorbing elastomer strips at the bottom of the slots.

Applicable Standards

MIL STD 810
DEPARTMENT OF DEFENSE TEST METHOD STANDARD: ENVIRO...
ASTM D5276
Standard Test Method for Drop Test of Loaded Containers by Free Fall
ISTA 6
e-Commerce Fulfillment for Parcel Delivery Shipment
ISTA 2
Packaged-Products weighing 150 lb (68 kg) or Less
ISTA 3
Parcel Delivery System Shipments 150 lb (70kg) or Less
ISO 2248
Packaging — Complete, filled transport packages — Vertical impact test by dropping
MIL STD 810G
DEPARTMENT OF DEFENSE TEST METHOD STANDARD: ENVIRONMENTAL ENGINEERING CONSIDERATIONS AND LABORATORY TESTS
