EMCO Meter Run Series MSRS and MSRF with Carrier Rings and Corner Pressure Tappings

Name: EMCO Meter Run Series MSRS and MSRF with Carrier Rings and Corner Pressure Tappings
Brand: EMCO Controls
Availability: InStock
Rating: 4.5 (1 reviews)

by EMCO Controls

View EMCO Controls on TEKEN44

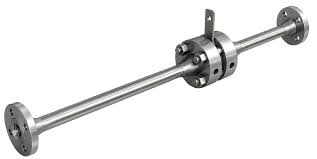

The EMCO Meter Run is used as a primary element in flow measurement of liquid, gas and steam applications based on the differential pressure principle. According to this working principle, the orifice plate creates a flow restriction within the meter run to allow measurement of the resulting pressure drop and flow rate. Our orifice plates have been tested and tried for over 50 years and measure up to the highest industry and compliance standards. The Meter Run Series MSRS and MSRF combine the orifice plate with a straight pipe run ro enhance the flow profile. The construction includes carrier rings and corner pressure tappings.

Applicable Standards

ISO 5167-2
Measurement of fluid flow by means of pressure dif...
ISO 5167-1
Measurement of fluid flow by means of pressure differential devices inserted in circular cross-section conduits running full Part 1: General principles and requirements
ISO 5167-3
Measurement of fluid flow by means of pressure differential devices inserted in circular cross-section conduits running full Part 3: Nozzles and Venturi nozzles
ISO 5167-4
Measurement of fluid flow by means of pressure differential devices inserted in circular cross-section conduits running full Part 4: Venturi tubes
ISO 5167-5
Measurement of fluid flow by means of pressure differential devices inserted in circular cross-section conduits running full Part 5: Cone meters
ISO 5167-6
Measurement of fluid flow by means of pressure differential devices inserted in circular cross-section conduits running full Part 6: Wedge meters
BS 1042-1
Measurement of fluid flow in pipes. Orifice plates, nozzles and venturi tubes.
