Trunnion Supported Fixed Ball Design, Available in Full or Reduced Bores. Features include Anti-blow-out Stem, Anti-static, Firesafe/Fire-tested, Lockable. Designs conform to API 608, API 6D, BS 5351, and ISO 17292 standards. Body styles include Two-piece and Three-piece. End connections are Flanged

Seat Supported Floating Ball Design, Available in Full or Reduced Bores. Features include Anti-blow-out Stem, Anti-static, Firesafe/Fire-tested, Lockable. Designs conform to API 608, API 6D, BS 5351, and ISO 17292 standards. Body styles include One-piece, Two-piece, and Three-piece. End connections

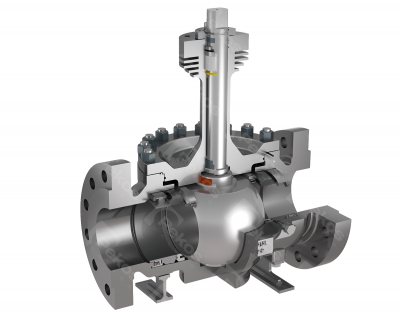

Forged trunnion ball valves are an excellent choice for on/off service in large and high pressure applications because the ball is anchored at the top and bottom of the design. Bonney Forge is a trunnion mounted ball valves manufacturer in an extensive range of designs, materials, sizes, pressure cl

Trunnion ball valves have the obturator bounded by trunnions which do not allow axial displacements of the ball itself in the flow direction; line pressure compresses the seat onto the ball, the contact between surfaces generates the valve sealing; trunnion standard construction ensure automatic cav

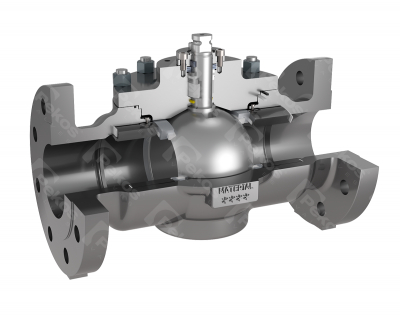

Floating ball valves are ideal for low to medium pressure applications where tight shutoff is crucial. The ball floats slightly downstream to press against the seat, ensuring a reliable seal. Trusted by top European valve manufacturers, these valves offer simplicity and efficiency. As leading ball v

Bonney Forge manufactures Double Block and Bleed Valves ( DDB valve) in an extensive range of designs, materials, sizes, pressure classes and end connections that are designed in accordance to ASME B16.34 and where applicable API 6D or BS EN ISO 17292. The valves are fire-safe test approved and inc

The Series S85 Threaded Ball Valve complies with various standards and certifications, including ISO 5211, NACE MR0175, NSF-61/372, ASME B16.34, MSS-SP-72, MSS-SP-110, PED, PE(S)R, CRN, and SIL.

FEATURE Standard port, 1/4″~2″ (DN8~DN50) W.P. : 2160 WOG W.T. : -20°C~200°C (-4°F~392°F) Investment casting Blow-out proof stem Anti-static device (option) Locking device ISO 5211 mounting pad Seal welded ends ASME B16.34 Wall thickness NACE MR0175 API 607 Fire safe approved API 608 Design Thread t

Side-Entry (split-body) two or three pieces bolted construction, Seat-supported ball, renewable seats, Full or Reduced Bore, Bi-Directional.

The Bray Series 5000/6000 3-Piece Ball Valve complies with several industry standards and certifications, including ASME B16.34 for design, ASME B1.20.1 NPT for threaded end connections, ASME B16.11 for socket weld end connections, API 598 for testing, MSS-SP 72 for shutoff rating, and ISO 5211 for

trunnion mounted ball valves feature: a full line product offering with valves ranging in 2"-42", ANSI classes 150LB - 2500LB, forged steel bolted or all welded body, close coupled trunnion block design for low operating torques, secondary seat sealant feature.API-6D valves are offered with self rel

Sizes: 1/2″ – 2″ Pressure Range: 1500/2000 CWP Port: Full Port Body Materials: WCB or CF8M Trim Materials: 316SS Seat Materials: RPTFE Seal Materials: graphite End Configurations: THD, SWE, THD x SWE Operator: Lever Locking Device: Standard Design Standard: API 608, ASME B16.34 Pressure Test to API

ISV lubricated plug valves are specifically suited for oil and natural gas pipeline applications in sizes ranging from 2″ through 36″. Available pressure classes range from ANSI class 150 through class 2500. ISV plug Valves are manufactured in strict accordance to API 6D, and ISO 9001 quality sta

Sizes: 1/2″ – 2″ Pressure Range: 1500 CWP Port: Full Port Body Materials: CF8M Trim Materials: 316SS Seat Materials: Kel-F Seal Materials: RPTFE End Configurations: Threaded, SW, THD x SWE ends Operator: Lever Locking Device: Standard Design Standard: API 608, ASME B16.34 Pressure Test to API 598 Co

Body & end caps quality investment casting ASME B16.34/ ISO 17292 compliant Stem extension according to Shell SPE 77/200 Tongue & groove body seal design for better sealing Heavy duty design 1500 psi (1/4″~2″)/ 1000 psi (2-1/2″~4″) with ISO 5211 direct mounting pad High performance adjustable stem p

Trunnion mounted ball valves, construction to ASME B16.34 - API6D, 2/3 piece bolted body, split body, side entry, double block & bleed, flanged RF/RTJ to ANSI B16.5, face to face to ANSI B16.10, full/ reduced bore, ISO (5211) top work standardized for actuation, seat leakage rate to ISO 5208 Rate A,

The CQF DIN Series is a 3/4/5-way floating ball valve specifically designed for cryogenic applications. It allows for different ball port configurations with “L”, “T” or “X” options and with isolation at every port. Available with welded, threaded or flanged CL150 and CL300 end connections, this val

The CTR ASME Series is a trunnion mounted ball valve that offers a large range of applications. It features a split body, and uses C-RPTFE seats for maximum chemical compatibility combined with minimum coefficient of friction. It is a bi-directional, single piston effect, zero leakage valve and has

Valves suitable for Oil & Gas production, processing, transportation, distribution, chemical and petrochemical refining including system isolation, pressure level and flow measurement, instrument drain, chemical injection and sampling for smaller sizes.
