WIKI 90 CNC

Name: WIKI 90 CNC
Brand: AFFRI
Availability: InStock
Rating: 4.5 (1 reviews)

by AFFRI

View AFFRI on TEKEN44

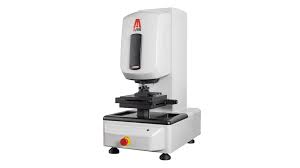

Micro hardness tester WIKI 90 CNC is a motorized and automatic system for Vickers, Knoop, or Brinell hardness testing with load cell technology, a high definition camera for indent auto-reading, and a motorized turret with 6 positions (4 steps for lens and 2 steps for indenters). Fully conforms to ASTM and ISO hardness standards. One button measurement: Click the START button: the hardness tester indents the sample, moves to the camera, measures, and generates data dynamically. Semi-automatic case hardness depth (CHD) can be easily done thanks to the 1µm step XY table connected to the PC and the step-by-step assisted procedure. For micro-macro Vickers and CHD case depth tests on all metals: iron, steel, tempered steel, cast iron, brass, aluminum, copper, and metal alloys. Heat treatment, hardening, nitriding, cementation, and hard facing. Knoop test on ceramic and glass materials.

Applicable Standards

ISO 6507
Metallic materials — Vickers hardness test Part 1: Test method
ISO 6506
Metallic materials — Brinell hardness test
ASTM E-384
Standard Test Method for Microindentation Hardness of Materials
ASTM E-92
Standard Test Methods for Vickers Hardness and Knoop Hardness of Metallic Materials
ISO 4545
Metallic materials — Knoop hardness test
ASTM E-10
Standard Test Method for Brinell Hardness of Metallic Materials
