Gas meters

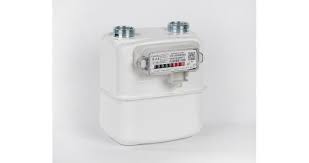

Samgas G1,6 RS/2001-2

by SAMGAS

View SAMGAS on TEKEN44

Gas meters are designed to measure volumes of natural gas according to ГОСТ 5542-87, fuel gases of the 1st, 2nd and 3rd categories according to EN 437: 2003, which flows through a pipeline with a maximum excess working pressure of up to 0.05 MPa and a maximum actual flow rate up to 2.5 m³ / h. The meters comply with the requirements of the Technical Regulations of Measuring Instruments (Cabinet of Ministers of Ukraine Decree No. 163 of February 24, 2016), DSTU EN 1359: 2012 "Diaphragm Gas Meters General Specifications (EN 1359: 1998 / A1: 2006, IDT). A gas meter used to measure the volume of gas consumption. Gas meters are used at residential and commercial buildings that consume fuel gas supplied by a gas utility. Meters are suitable for use with corectors, calculators, remote sensing systems (АСКОЕ) and can be used in systems for monitoring, regulating and controlling production processes. The operating position of the meter is vertical. The operating position of the meter is vertical. Meter operation mode is continuous. The direction of gas flow is indicated by an arrow located on top of the housing between the inlet and outlet fittings. The meter is a single-function product, it does not require maintenance and it should be periodically verified in accordance with national standards or regulations. The manufacturer guarantees compliance of the SAMGAS gas meter with the requirements of the Technical Regulations and DSTU EN 1359: 2012, provided that the consumer complies with the rules for transportation, storage, installation and operation of the meter set forth in the instruction manual. The warranty period of the operation of the meter is 8 years from the date of its manufacture. The warranty period of the storage of the meter is 2 years from the date of its manufacture.
