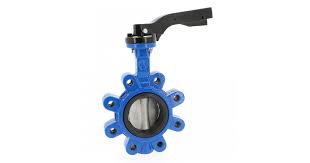

Butterfly Valve Lug Type, EN-1092 Flanged, Stainless Steel Disc, NBR Soft Seat

by MT Valves & Fittings

View MT Valves & Fittings on TEKEN44

PN16 lug type butterfly valve with NBR seat and A-316 stainless steel disc. Made of ductile GGG40 cast iron with RAL5013 epoxy paint coating. The valve is suitable for shutting off the flow of a fluid partially or completely. It withstands a maximum working pressure of 16 bar (250 psi) and can withstand operating temperatures from -20 to 80°C . Model 5144 is ideal for use in air conditioning, ventilation, heating, water, gas, oil and hydrocarbon treatment and distribution, fire-fighting and irrigation systems. It can be installed both vertically and horizontally. MT cast iron valves are flanged in accordance with EN-1092 (PN16). MT Industrial Division products are high-quality parts, specifically designed for industrial contexts. The entire range is manufactured under strict quality parameters and complies with the highest certifications in fluid handling. Ductile Iron body GGG-40 Epoxy coating paint RAL5013 Stainless Steel disc AISI 316 (ASTM A276) Prepared for flange according to EN-1092: DN50 to DN150 PN10/PN16. DN200 to DN300 PN16. Face to face according to EN-558-1 (series 20) Direct Mounting Pad ISO 5211 Valves for water supply EN-1074 Performance requirements according to AWWA C-550 NBR shore 70 disc seat according to EN-681 Working temperature: -10° to 80°C Max. Working Pressure: 16 bar
