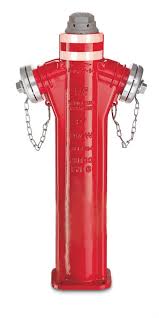

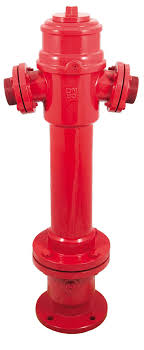

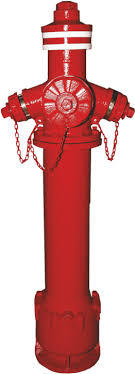

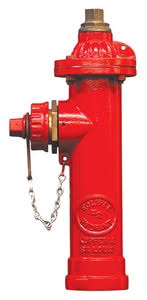

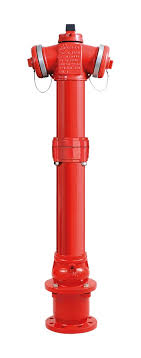

FIRE HYDRANT

FIRE HYDRANT

by Yakacık Valf Sanayi ve Ticaret Anonim Şirketi

View Yakacık Valf Sanayi ve Ticaret Anonim Şirketi on TEKEN44

Fluids used • Water Advantages • Instant intervention • No shock effect • Automatic discharge • No pumping Sectors Used It is used in water extinguishing systems of factories, warehouses, buildings and industrial facilities, as well as in cities and towns for direct intervention during fires and for the purpose of the fire department to receive water. Working system When the opening-closing disc is turned in the opening direction with a special hydrant key, it moves the movement pipe downwards. Thus, the valve is peeled off the seat and the hydrant is opened. When the opening-closing disc is turned in the closing direction, the hydrant is closed with the opposite movement. Closing is in the flow direction from bottom to top. In this way, perfect sealing is provided since the valve is under the effect of the water pressure coming from the network. Diameter DN 80 DN 100 DN 150 Pressure PN 16 Dimensions TS EN 14384 Material GJL250 Cast Iron Connection type Flanged according to DIN 1092-2 PN 16 Height 1435 mm 1750 mm 2150 mm Colors Cast Iron - Red
