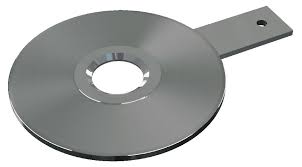

View EMCO Controls on TEKEN44The EMCO Orifice Plate is used as a primary element in flow measurement of liquid, gas and steam applications according to the differential pressure principle. According to this working principle, the orifice plate creates a flow restriction in the pipeline to allow measurement of the resulting pressure drop and flow rate. Our orifice plates have been tested and tried for over 50 years and measure up to the highest industry and compliance standards. The Orifice Plate Series ISB/1 is a single bore plate for mounting between raised face flanges.
ISO 5167-2
Measurement of fluid flow by means of pressure dif...
ANSI/ASME MFC-3M
Measurement of Fluid Flow in Pipes Using Orifice, Nozzle, and Venturi
ISA RP3.2
FLANGE MOUNTED SHARP EDGED ORIFICE PLATES FOR FLOW MEASUREMENT
AGA XQ1201 (Report No.3)
AGA Report No. 3, Orifice Metering of Natural Gas Part 1: General Equations and Uncertainty Guidelines, Includes Errata (2013)
