Safety Oven Valves (FE3)
Safety Oven Valves (FE3) • Usage Area : In furnaces and ovens • Used Gases : LPG - Natural Gas • Working Lifetime : 40.000 Cycle ( 0.2 Nm ) • Full Flow Rate : 0.55 m³/h • Group : 1 • Nominal Diameter : DN8 • Gas Family : 1,2,3 • Control Of Class : A • Directive : 2016/426/EU (GAR) • CE certified • Relevant Standard : EN 126 • Maximum Working Pressure : 65 mbar • Maximum Working Temperature : 0 - 130°C • Inlet Connection Alternatives ( Screw ) : M8x0.75 - NPT 1/8 • Inlet Connection ( Flange ) : Minimum Ø10 - Maximum Ø18 • Outlet Connection Alternatives : M12x1, M13x1, M14x1.5, G1/4" or Injector • Spindle Diameter : Ø6, Ø8 • Socket or screw type magnet option • Flow rate can be adjusted according to customer demand.
TEKEN44 Similar Products
Google Lens Search · visually similar products
The TEKEN44 product image was analyzed with Google Lens via the TEKEN44 MCP server to find 20 visually similar products from across the web.
PEL GAS TAP FFD 23S HIGH OUTPUT VALVE FSD SAFETY DEVICE ...
Safety Oven Valves (FE1)
PEL PEL21S gas tap with ignition flame thermocouple ...
Gas Armatures

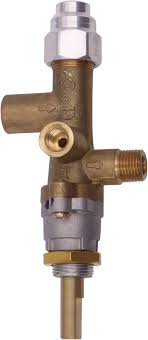

Meter Star Propane LPG Gas Room Space Heater & Outdoor Patio ...

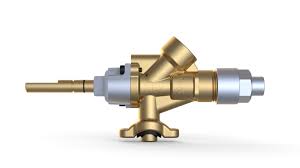

OVEN VALVES
