HMD Kontro Sealless Magnetic Drive Pumps.

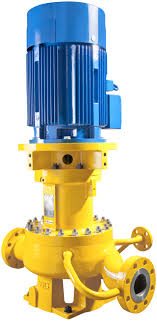

HMD Kontro GSPV Vertical API 685 Pump

by Sundyne

View Sundyne on TEKEN44

A Compact, Vertical Pump for Space Optimization The vertical in-line GSPV pump provides all of the benefits of a magnetic drive sealless pump in a compact package. Requiring minimum floor space, the GSPV meets all of the requirements of API 685, making it ideal for chemical, petrochemical, and oil and gas applications, including those where space is at a premium, such as in offshore installations. Dimensionally the range conforms to BS4082, thus providing a sealless upgrade solution to existing installations. Key Design Features: • Simple sealless upgrade path for existing sealed API 610 pump installations. • Fully compliant to the API 685 sealless centrifugal pump standard. • Total product containment with no leaks or emissions, improving operator safety and environmental protection. • No seals or seal support systems to maintain, reducing overall lifecycle costs. • Easy to install, commission, operate and maintain, with no requirement for special tools. Flows up to 1,035 GPM (235 m³/hr) Heads to 295 ft (90m) Temperature Range -40 to 400°F (-40 to 205°C) Design Pressure: 580 psi (40 bar) Higher pressures available
