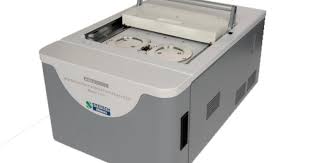

Water Vapor Transmission Rate Tester

Name: Water Vapor Transmission Rate Tester
Brand: Industrial Physics
Availability: InStock
Rating: 4.5 (1 reviews)

by Industrial Physics

View Industrial Physics on TEKEN44

The AquaSense 7101 Water Vapor Transmission Rate Tester complies with the following standards: ASTM F1249, ASTM F3299-18, DIN 53122-2, ISO 15105-2, and ISO 15106-3.

Description

Water vapor transmission rate tester offering a wide measurement range with precision temperature, humidity, and flow control. Ideal for measuring moisture vapor transmission rate (MVTR) of liquids through packaging film materials. Features include a high-sensitivity P2O5 coulometric sensor, wide measurement range, and compliance with global standards.

Applicable Standards

ISO 15106-1
Plastics — Film and sheeting — Determination of water vapour transmission rate — Part 1: Humidity detection sensor method
ISO 15106-3
Plastics — Film and sheeting — Determination of water vapour transmission rate Part 3: Electrolytic detection sensor method
ISO 15106-2
Plastics — Film and sheeting — Determination of water vapour transmission rate Part 2: Infrared detection sensor method
ISO 15105-2
Plastics film and sheeting — Determination of gas-transmission rate Part 2: Equal-pressure method
ASTM F3299
Standard Test Method for Water Vapor Transmission Rate Through Plastic Film and Sheeting Using an Electrolytic Detection Sensor (Coulometric P2O5 Sensor)
DIN 53122-2
Determination of water vapour transmission (density of moisture flow rate) of plastic films, elastomer films, paper, board and other sheet materials - Electrolysis method
ASTM F1249
Standard Test Method for Water Vapor Transmission Rate Through Plastic Film and Sheeting Using a Modulated Infrared Sensor
