Standard Burner Valve (OV1)
Usage Area : In furnaces • Used Gases : LPG - Natural Gas • Working Lifetime : 40.000 Cycle ( 0.2 Nm ) • Full Flow Rate : 0.55 m³/h • Group : 1 • Nominal Diameter : DN8 • Gas Family : 1,2,3 • Control Of Class : A • Directive : 2016/426/EU (GAR) • CE certified • Relevant Standard : EN 1106 • Maximum Working Pressure : 65 mbar • Maximum Working Temperature : 0 - 130°C • Inlet Connection ( Screw ) : M8x0.75 - NPT 1/8 • Inlet Connection Alternatives ( Flange ) : Minimum Ø10 - Maximum Ø18 • Outlet Connection Alternatives : M10x1, M12x1, M13x1, G1/4" or Injector • Spindle Diameter : Ø6, Ø7 • Flow rate can be adjusted according to customer demand.(Pılot and injector diameter)
TEKEN44 Similar Products
Google Lens Search · visually similar products
The TEKEN44 product image was analyzed with Google Lens via the TEKEN44 MCP server to find 20 visually similar products from across the web.

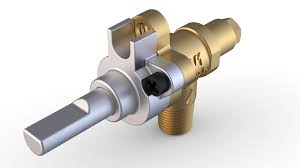

Standart Ocak Valfi (OV1)
Válvula de control de seguridad de gas con dispositivo de ...
Simple Gas Valve GN

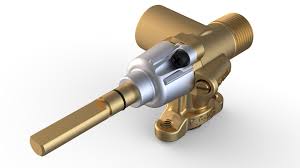

Standard Double Outlet Furnace Valves (FC1)
válvula de parrilla útil para asar a la parrilla - Alibaba.com
PRESIDENTEXIM İÇ VE DIŞ TİCARET KAYSERİ TÜRKİYE
Restaurant LPG Gas Catering Stove Valve - Control Valve ...

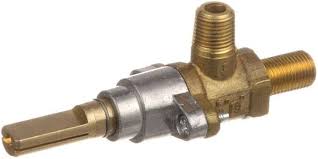

Amazon.com: Válvula, gas - ON/OFF; : Industrial y Científico
Gas Armatures

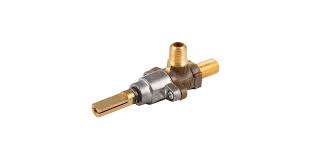

APW Wyott AS-2068500 Valve, Gas 210 On/Off
Gvs Gaz Valfleri Sanayi ve Diş Ticaret Limited Şirketi ...
Burner Valve1/4 MPT X 1/2-27 for Hobart - Part# 00-710121 | eBay
TANDOOR GAS VALVE 21S SHAAN SHAHI CLAY OVEN CONTROL TAP ...
Buy Vulcan Hart 710121 Valve for Spr-100 Online Liberia | Ubuy
LPG Stove Burner Parts - Solenoid Valves & Safety Controls
Stove Valve M8 STRAIGHT 2P Nipple 7/16″ Stem Length: 43 mm ...

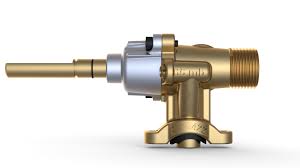

OVEN VALVES
Grifo gas cocina FAGOR

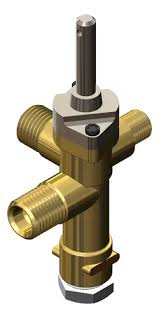

Válvula Calefactor Coppens Tb 4000 Acero | MercadoLibre
