Tanaka Scientific Limited

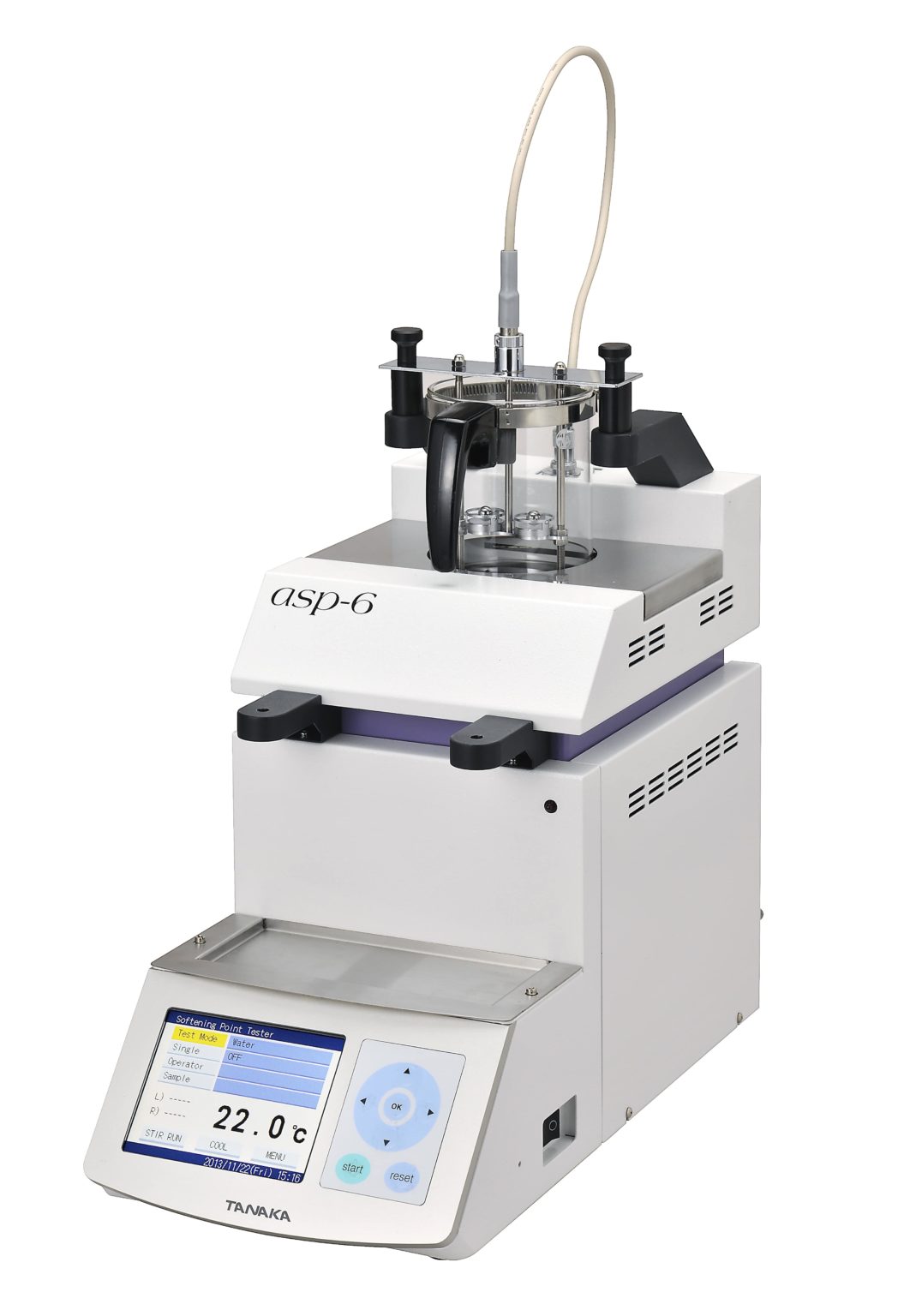

asp-6 automates softening point test of bitumen and other materials by utilizing photo-electric device with a wide light beam, which assures reliable detection. Stirring function has been newly applied and a test can be done with one of the four test modes; Water, Glycerin, Water+Stirring, Glycerin+Stirring. 200 test results can be stored in the data memory. Generation of harmful vapor from overheated glycerin is prevented by the safety shutdown.

aap-6 automatically determines aniline point for wide range of samples. The use of special infrared detector gives the instrument it's ability to see through dark / opaque samples such as power generation fuels and marine diesel oils. The measuring cell can be easily removed and placed on an analytical balance for weighing viscous samples which are solid at ambient temperature. The measuring cell can be cleaned without disassembling, which makes the cleaning easier and safer. Due to safety concerns with aniline, ISO has developed a new test method (ISO 21493) where the aniline is replaced with a much safer reagent p-anisaldehyde and the test is defined as the turbidity point. The method also provides an equation which enables the user to calculate the aniline point equivalent based on the turbidity point. Tanaka and aap-6 were heavily involved in the ILS for developing this method. The aap-6 is now equipped with the ISO 21493 mode where the instrument will run the replicate tests according to the repeatability defined in the ISO method.

afp-300 automatically executes the Cold Filter Plugging Point (CFPP) test prescribed in ASTM D6371 and other test methods. The new user interface has greatly enhanced the usability. The built-in CFC-free Sterling cooler accommodates both linear and stepwise cooling.

Tanaka’s new Automatic Pour / Cloud / Freezing Point Tester mpc-6 is designed with “Simple, Reliable, and Robust” concepts. The mpc-6 requires a mere 4.5 mL sample and provides quick automatic determination of 3 key cold property measurements with high precision. INNOVATIVE Tanaka’s original mini test methods which require much less sample volume (4.5 mL) and short testing time compared to conventional manual methods SMALLEST FOOTPRINT Very small width of 16 cm allows for most efficient use of bench space. 3-in-1 Test pour point, cloud point, and freezing point with just one instrument. Pour and cloud can be run simultaneously in a single run. Eco-friendly Equipped with CFC-free cooler achieving low noise, low vibration, and energy-saving. Sample temperature of -90℃ can be reached without external chiller. ● Intuitive 7-inch Touch-Screen Operation: Simplicity ensures smooth operation. ● Extremely Simple: Set sample cup, input expected points and then press START. Pre-heat and cooling sequence are run automatically. Pour and cloud point results can be obtained in a single run. ● Search Mode for Unknown Samples: The new SPE mode will test pour point with different pressures so that parameter optimization can be easily done. ● Data Connectivity and Management: Data can be exported to LIMS or optional printer via Ethernet. Data storage for up to 50 data can be secured with password.

Easy Operation Equipped with 7-inch color LCD touch screen for simple, intuitive operation. Simply select a pre-registered test mode. No need to set detailed parameters. Ignition Source Can be switched between gas and electric ignition. Safety device When flame is detected by the thermal fuse or detection rings, the test will stop and the fire extinguishing auxiliary shutter will pop out. For additional safety, the emergency button is placed in the front side of the instrument. Data Storage 1,000 test results can be stored in the unit. 50 test results are displayed on the screen. By exporting to USB flash memory, all stored test results can be reviewed.

Since 1966, Tanaka has been delivering automated flash point testers for higher productivity at petroleum laboratories. The theme of the 8th generation model series is “ Ergonomic, Versatile, Robust and Safe “ ●Ergonomic: Color coordinated display and switches for high visibility / intuitive operation, and universal design ●Versatile: USB port for USB flash drive or keyboard, password protection and enhanced data storage ●Robust: Premium design and high quality finish suited for many years of reliable use ●Safe: Enhanced safety with fire containment system (Default for apm, atg & aco, optional for abl) Further improved Swing Arm Assembly for easy setting and cleaning : After inserting the test cup in the instrument, just lower the swing arm assembly onto the test cup to set all the necessary components for the test, including the ignition source, temperature sensor, flash detector and stirrer (in case of apm, atg and abl series). After the test, lift the arm to the complete upright positon for easy cleaning. aco-8 is an automated Cleveland Open Cup (COC) flash & fire point tester. Flash point as well as fire point can be determined automatically. The fire point is detected when the double ionization rings detect 5 sec of continuous burning. In addition to the existing gas ignition models (aco-8/8as), 2 new electric ignition models (aco-8e/8eas) have been launched. An electric igniter coil replaces the gas flame which allows the user to remove combustible gas from the lab and operate in a safer environment. Fire containment by a metallic lid covers the test cup automatically when a sustained fire is detected. Model aco-8as and aco-8eas are for testing bituminous materials.

Since 1966, we have provided automated flash point testers with reliable results and high productivity to customers around the world. 10 years have passed since the release of the 8 series, and the model has been changed from apm-8 to apm-100. Easy Operation Equipped with 7-inch color LCD touch screen for simple, intuitive operation. Simply select a pre-registered test mode. No need to set detailed parameters. Preheat Function Ideal for high viscosity samples. By using this function, heating will start after the sample stabilizes at set temperature so that the heating rate will be stable. Data Storage 1,000 test results can be stored in the unit. 50 test results are displayed on the screen. By exporting to USB flash memory, all stored test results can be reviewed. Fire Containment System In case sample catches fire, containment gas (N2 or CO2) is automatically blown to sample cup to contain the fire. (Containment gas must be prepared by user)1, Compatibility Consumables such as electric igniter, temperature sensor, flash detector, and test cup are compatible with APM-8. Even if updated to apm-100, the parts can still be used.

Extended Measurement Range With an external chiller, a measuring range down to 0 ℃ can be achieved. Easy Operation Equipped with a 7-inch color LCD touch screen for simple, intuitive operation. Simply select a pre-registered test mode. No need to set detailed parameters. Data Storage 1,000 test results can be stored in the unit. 50 test results are displayed on the screen. Ignition Source Can be switched between Gas and Electric ignition. Consumable Parts Consumables are the same as the 8 series, therefore TANAKA users can utilize any remaining parts.

Since 1966, Tanaka has been delivering automated flash point testers for higher productivity at petroleum laboratories. The theme of the 8th generation model series is “ Ergonomic, Versatile, Robust and Safe “ ●Ergonomic: Color coordinated display and switches for high visibility / intuitive operation, and universal design ●Versatile: USB port for USB flash drive or keyboard, password protection and enhanced data storage ●Robust: Premium design and high quality finish suited for many years of reliable use ●Safe: Enhanced safety with fire containment system (Default for apm, atg & aco, optional for abl) Further improved Swing Arm Assembly for easy setting and cleaning : After inserting the test cup in the instrument, just lower the swing arm assembly onto the test cup to set all the necessary components for the test, including the ignition source, temperature sensor, flash detector and stirrer (in case of apm, atg and abl series). After the test, lift the arm to the complete upright positon for easy cleaning. atg-8 is an automated Tag Closed Cup flash point tester. Model atg-8wfc is with conventional water bath. Model atg-8afc and atg-8lfc are available for low temperature range. The cooling / heating for these models are by Peltier modules (Model atg-8lfc requires an optional chiller). Furthermore, it is standard equipped with fire containment system. It can extinguish fire effectively by flowing quenching gas (N2 or CO2) from external connection port.

Since 1966, Tanaka has been delivering automated flash point testers for higher productivity at petroleum laboratories. The theme of the 8th generation model series is “ Ergonomic, Versatile, Robust and Safe “ ●Ergonomic: Color coordinated display and switches for high visibility / intuitive operation, and universal design ●Versatile: USB port for USB flash drive or keyboard, password protection and enhanced data storage ●Robust: Premium design and high quality finish suited for many years of reliable use ●Safe: Enhanced safety with fire containment system (Default for apm, atg & aco, optional for abl) Further improved Swing Arm Assembly for easy setting and cleaning : After inserting the test cup in the instrument, just lower the swing arm assembly onto the test cup to set all the necessary components for the test, including the ignition source, temperature sensor, flash detector and stirrer (in case of apm, atg and abl series). After the test, lift the arm to the complete upright positon for easy cleaning.

It’s been over 50 years since we started manufacturing automated distillation testers. Nowadays, we deliver to customers in more than 70 countries. ad-7 automatically performs distillation test of petroleum products as well as narrow boiling range samples. 10.4 inch LCD with tough panel has been adopted for easy and intuitive operation. Peltier system is employed for cooling / heating of the condenser and receiver cylinder compartment. Robust design for continuous use.
