Roigk GmbH & Co.

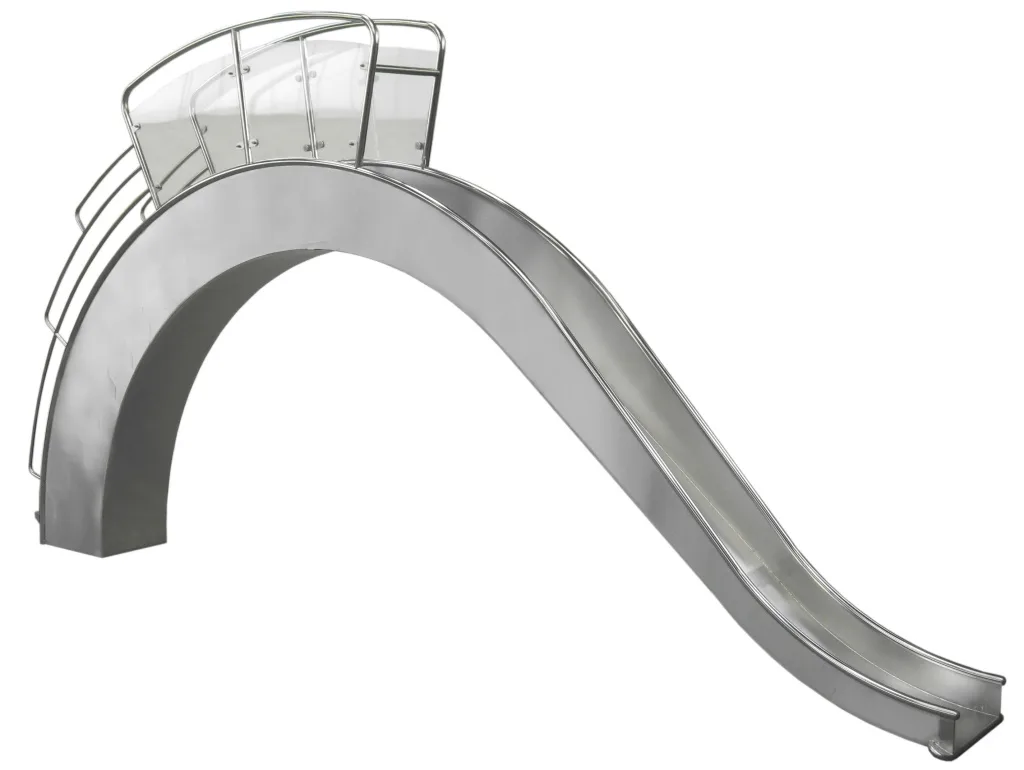

The big brother of the R152-1.0SE in a curved S-shape with safety stairs and safety railings. Classification according to DIN EN 1069: Type 1.2 Size (L/W/H): approx. 6,000 x 550 x 3,100 mm Platform height: approx. 1,930 mm Water flow rate: approx. 5 – 10 l/min Material: Stainless steel V4A (1.4571) Target group: Children Positioning: at the pool edge with a sink = from approx. 1,000 mm

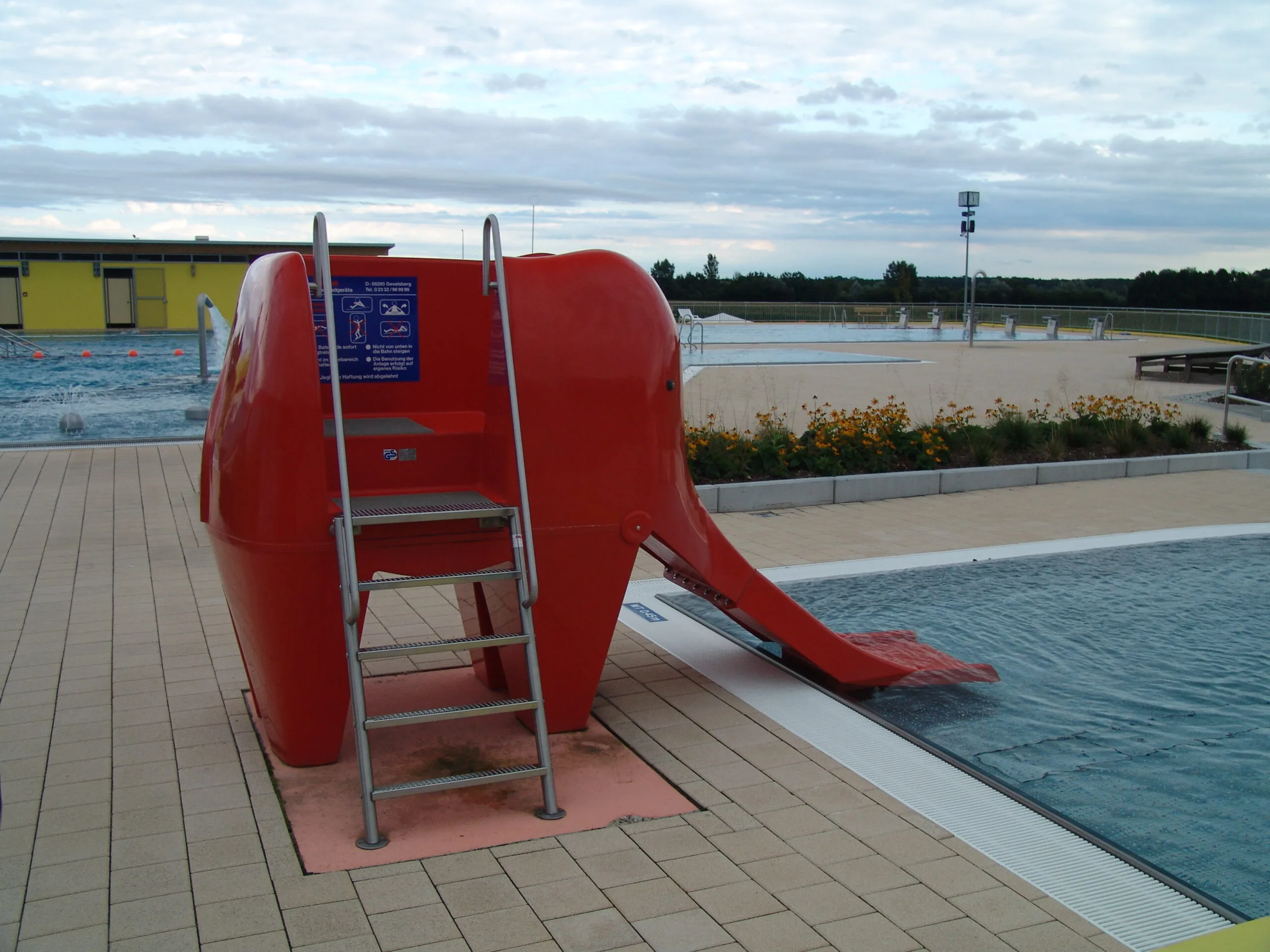

The elephant-shaped water slide is a classic for children. It becomes even safer with the optional safety access stairs made of closed, non-slip GRP steps and double handrail. Classification according to DIN EN 1069: Type 1.2 Size (L/W/H): approx. 2,950 x 2,050 x 1,800 mm Platform height: approx. 1,100 mm Material: Glass fiber reinforced plastic (GRP), stainless steel V4A (1.4571) Target group: Children and toddlers depending on water depth Positioning: at the pool edge with a water tray = from approx. 700 mm

This robust and safe stainless steel slide features an elephant design with large ears. The safety steps are made of sanded fiberglass. The slide is enclosed at the bottom for enhanced safety and easy cleaning. Classification according to DIN EN 1069: Type 1.1 Size (L/W/H): 2,200 x 1,000 x 1,250 mm Platform height: 550 mm Material: Stainless steel V4A (1.4571) Target group: Toddlers Positioning: in the pool with a water depth of 100 to 400 mm

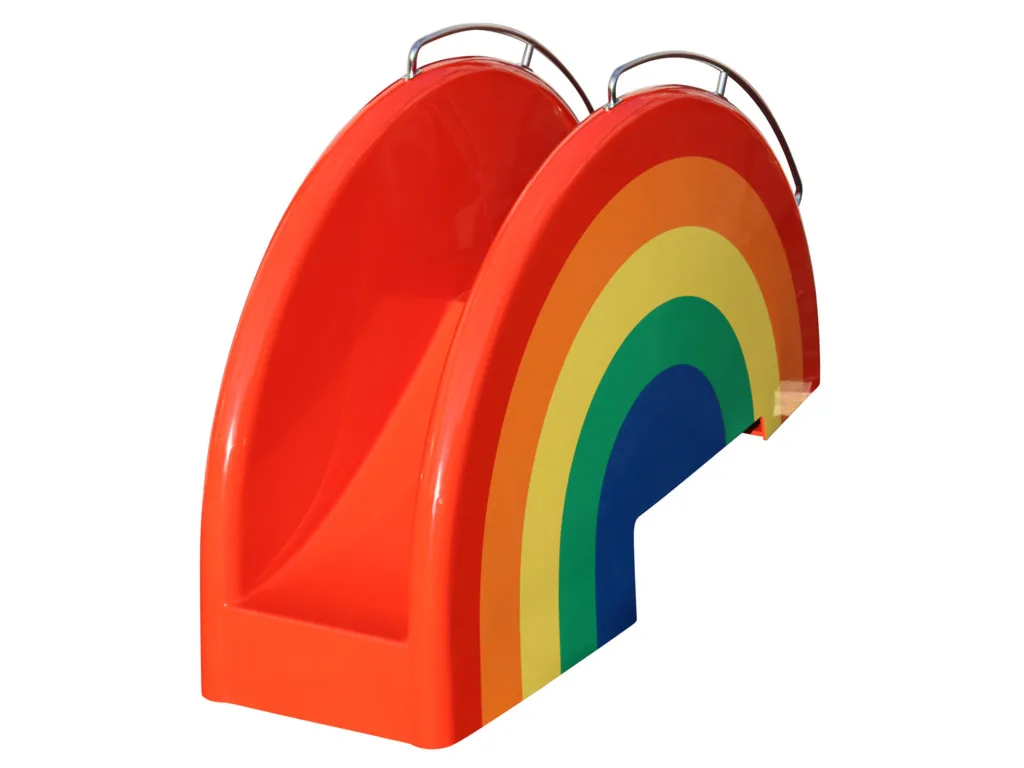

Version for placement at the poolside! Adapted to local conditions with slide exit and underwater protection! Classification according to DIN EN 1069: Type 1.1 Material: Glass fiber reinforced plastic (GRP), stainless steel V4A (1.4571) Positioning: at the pool edge with a water temperature of 300 to 500 mm

Similar to stainless steel Dumbi WIDE. For a soft landing, we recommend this slide with a trunk extension and underwater protection for increased safety, in accordance with DIN EN 1069 and GUV regulations. The trunk is specially adapted to the pool depth. The length of the slide changes accordingly. Classification according to DIN EN 1069: Type 1.1 Size (L/W/H): approx. 2,800 x 2,300 x 1,250 mm Platform height: 550 mm Material: Stainless steel V4A (1.4571) Target group: Toddlers Positioning: at the pool edge with a water level of 100 to 500 mm

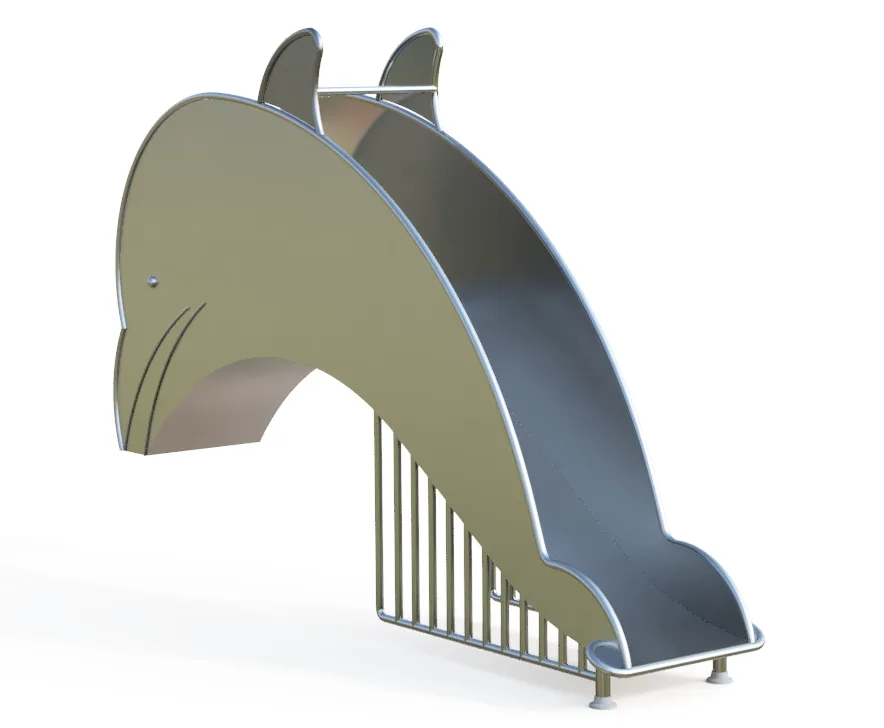

Similar to a dolphin slide. For a soft landing, we recommend this slide with fin extension and underwater protection for increased safety, in accordance with DIN EN 1069 and GUV regulations. The fin is specially adapted to the pool depth. The length of the slide changes accordingly. Positioning: at the edge of the pool with a water depth of 100 to 500 mm

For independent operation by the user. Very lightweight and therefore easy to roll. The further development of the R36 pool lift enables users to get in and out of the pool independently. The lift arm can be rotated laterally to the pool edge, allowing the user to easily transfer from a wheelchair or shower chair. Using a remote control, the user can then transfer themselves into and out of the water. Suitable for wheelchair users with a high degree of independence. The lift requires no additional attachment to the pool edge and can therefore be used flexibly at various points in the pool. Features include a control panel with up/down/right/left controls, an emergency stop button, a digital display for battery charge level, and two wheels with brakes. Color: white Size (L/W/H): approx. 2510 x 780 x 1500 mm Load capacity: 136 kg Medical device: Class 1 Weight of the lift: 300 kg, yet very easy to move Power supply: built-in 24V batteries (incl. charger) Target group: swimmers with various disabilities and a high degree of independence Positioning: at the poolside, especially in public swimming pools – suitable for almost all gutter systems Material: aluminum, stainless steel (1.4571)

The lifter combines four significant advantages: 1) It is mobile; no ground sleeve or anchoring is necessary. 2) Weighing approximately 140 kg, it is so light that even people with limited strength can easily push it. 3) The new design significantly reduces any barriers to use for the person being transported. 4) The lift can be used similarly to a wheelchair; the person can be picked up directly from the changing room. Unnecessary transfers are eliminated. Test the lifter with a 100% money-back guarantee (excluding shipping and packaging costs). With up/down control panel, emergency stop button, digital display for charge level, and two wheels with brakes. Secure positioning at the pool edge thanks to an automatically lowering, electrically operated locking mechanism at the front. Color: white powder-coated Size (L/W/H): approx. 1245 x 640 x 1512 mm Load capacity: 136 kg Medical device: Class 1 Weight of lifter: approx. 140 kg Power supply: built-in 24V batteries (incl. charger) Target group: swimmers with various disabilities Positioning: at the pool edge, especially in public swimming pools – suitable for all standard gutter systems where the water level is at a similar height to the pool deck, e.g., Wiesbaden gutter, Finnish gutter, stainless steel gutter, etc. Material: aluminum, stainless steel (1.4571) Test the lifter with a 100% money-back guarantee (excluding shipping and packaging costs).

The steps are always adapted to the specific local conditions and come standard with a handrail and knee rail. They rest on rubber buffers in the pool and in floor sockets at the pool edge, which can be optionally fitted with a sealing flange for alternative waterproofing. For improved visibility and slip resistance, the step edges can be finished with a sanded edge in a signal color, such as yellow. Underwater protection is available as an option. We also offer the steps in 1.4539 stainless steel for brine pools, providing exceptional corrosion resistance. Standard: DIN EN 13451-2 Steps: 600 x 250 mm, 800 x 250 mm or 1,000 x 250 mm with non-slip nozzle hole profile. Target group: elderly swimmers for whom a ladder is too steep. Positioning: at the poolside in public or private swimming pools (public pools only with 800 or 1,000 mm wide steps). Material: stainless steel V4A (1.4571) or (1.4539).

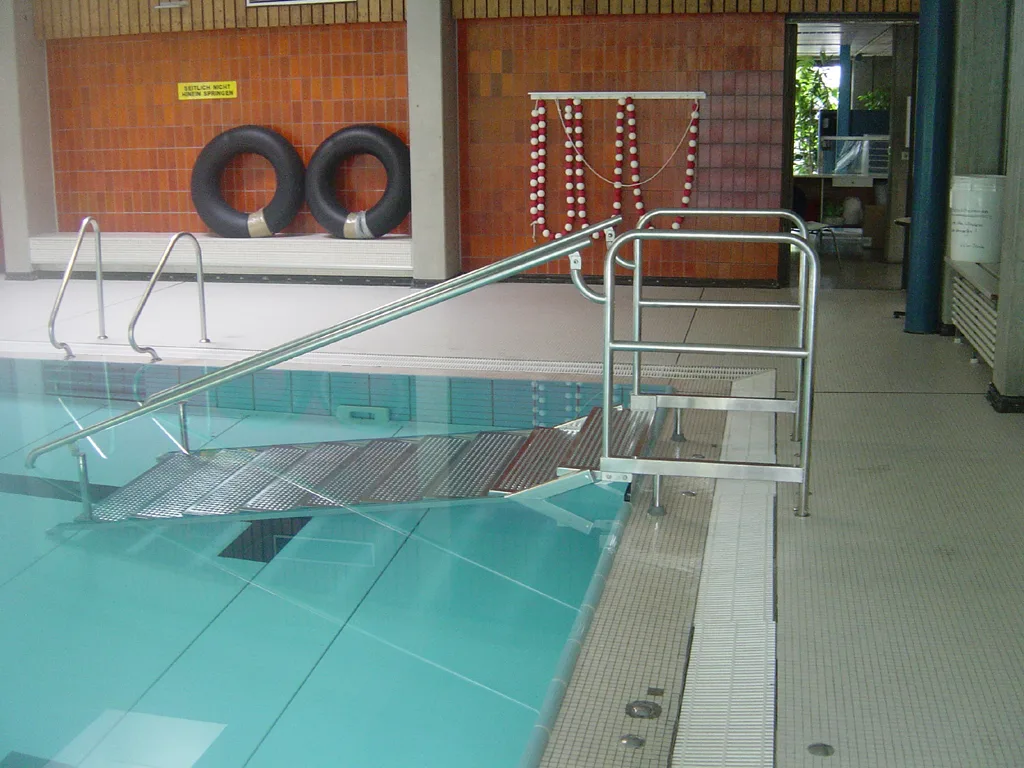

The R312 scissor ladder is recommended for height-adjustable lift floors. It is mounted on rollers in the pool and automatically adjusts to the water depth. Optionally available with anti-submersion protection. Adjustment range: from 0 to 1,800 mm or custom height. Standard: DIN EN 13451-2. Steps: 1,000 x 250 mm with non-slip nozzle hole profile. Target group: elderly swimmers for whom a ladder is too steep. Positioning: at the pool edge in public swimming pools with movable floor. Material: stainless steel V4A (1.4571) or (1.4539).

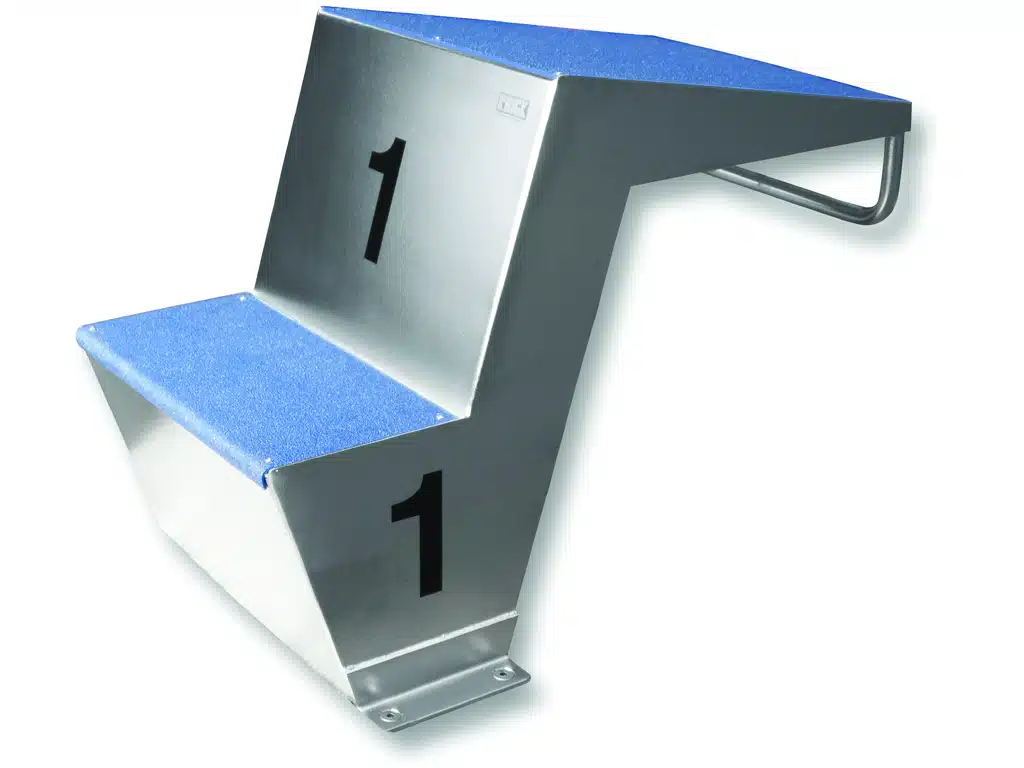

Design-oriented starting base in sheet metal construction with high-quality surface, with non-slip treads (slip class C according to DIN 51097) according to DIN EN 13451-4, the rules of the DSV and FINA. Size (H/W/L): 700 x 500 x 750 mm Target group: Swimming competition and training Positioning: Mounting area between 560 and 900 mm from the pool wall, e.g. suitable for Wiesbaden gutter

As a basic model, the R1680W meets all requirements of DIN 13451-4, the German Swimming Federation (DSV), and FINA. The box-shaped take-off area with high side panels is notched at the front (to allow for optimal launching assistance from three sides), inclined forward by 10 degrees, and features non-slip footing without visible screws. The starting platform is customized to each project in terms of inclination and distance from the pool edge. Size: Jump-off area 500 x 500 mm, intermediate step 300 x 300 mm Target group: national swimming competition and training Positioning: elevated tile or foil gutters, e.g. Finnish gutter Material: stainless steel V4A (1.4571), cover and intermediate step made of glass fiber reinforced plastic (GRP)

Lightweight design on a single round column. Ascent can be made from the right or left. The 5-meter system must always be combined with a 3-meter system, as the ladders must not exceed 3,000 mm in length. Required minimum water depth according to standard: 3,700 mm. Material: GRP coating, electropolished stainless steel 1.4571 (316Ti). The system can also be coated in color upon request.

To match the larger systems, the front of the jumping platform is mounted on a large round column. Access can be from the rear, the right, or the left. The diving platform with full-surface railing is used when the pool deck is lower than the water level, resulting in fall heights of over 1 meter. The diving platform is equipped to accommodate the Roigk roller adjustment mechanism R771252, the Roigk noise dampener R32, and the Roigk end bearing R31, or alternatively, the Durafirm springboard base R771161. Required minimum water depth according to standard: 3,400 mm. Material: GRP, electropolished stainless steel 1.4571 (316Ti). The system can also be coated in color upon request.

Without railings To match the larger pools, the front of the diving platform is mounted on a large round column. Access is possible from the rear, right, or left. For use, the water level must be lower than or equal to the pool deck; otherwise, a railing would be required. The diving platform is equipped to accommodate the Roigk roller adjustment mechanism R771252, the Roigk silencer R32, and the Roigk end bearing R31, or alternatively, the Durafirm springboard base R771161. Required minimum water depth according to standard: 3,400 mm. Material: GRP, electropolished stainless steel 1.4571 (316Ti). The system can also be coated in color upon request.
