Italsan

Electrically weldable and injection-molded polyethylene PE100 pipe and fitting system. The ELOFIT – NADIR pipe and fitting system is mainly manufactured from diameter 20 mm to diameter 630 mm, for pressurized applications for water supply and treatment (drinking, brackish, seawater and wastewater) and recovery of chemical fluids and hydrocarbons, with temperatures between -40° C and 40° C. Its FM accreditation according to Class 1613 certifies its suitability and guarantee for buried fire water supply networks and buried hydrant systems. The ELOFIT – NADIR system is manufactured and certified in accordance with the UNE-EN ISO 12201 standard.

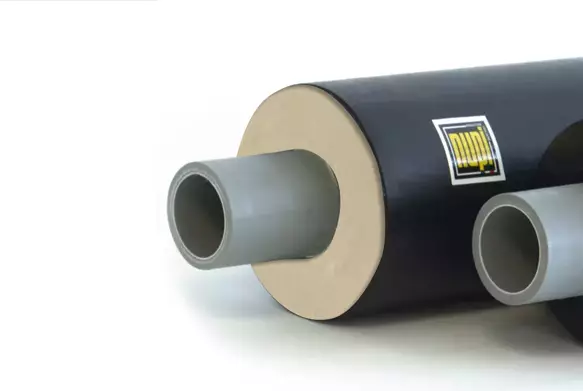

Pre-insulated piping system for distribution installations, chilled water, cold storage rooms in the food industry and industrial processes. Piping for installations with operating temperatures between -15°C and 95°C.

PE100 RC high-density polyethylene pipe (slow crack growth), composed with fiberglass that allows less thermal expansion, offering greater resistance to expansion/contraction against variations in fluid temperature. Blue or black exterior colored pipe. With Environmental Product Declaration (EPD)

Electrically weldable and injection-molded polyethylene PE100 pipe and fitting system. The ELOFIT – NADIR pipe and fitting system is mainly manufactured from diameter 20 mm to diameter 630 mm, for pressurized applications for water supply and treatment (drinking, brackish, seawater and wastewater) and recovery of chemical fluids and hydrocarbons, with temperatures between -40° C and 40° C. Its FM accreditation according to Class 1613 certifies its suitability and guarantee for buried fire water supply networks and buried hydrant systems. The ELOFIT – NADIR system is manufactured and certified in accordance with the UNE-EN ISO 12201 standard.

Electrically weldable and injection-molded polyethylene PE100 pipe and fitting system. The ELOFIT – NADIR pipe and fitting system is mainly manufactured from diameter 20 mm to diameter 630 mm, for pressurized applications for water supply and treatment (drinking, brackish, seawater and wastewater) and recovery of chemical fluids and hydrocarbons, with temperatures between -40° C and 40° C. Its FM accreditation according to Class 1613 certifies its suitability and guarantee for buried fire water supply networks and buried hydrant systems. The ELOFIT – NADIR system is manufactured and certified in accordance with the UNE-EN ISO 12201 standard.

Italsan offers a custom design and manufacturing service for manifolds and components for fluid distribution systems. The comprehensive service for manufacturing manifolds begins with the development of the design using BIM technology based on the client's sketch, hydraulic calculations and checks, the selection of the material based on the design conditions (pressure and temperature) and finally the custom manufacturing of the same. Italsan has manufactured collectors for all types of installations in diameters up to 630mm.

Italsan manufactures the widest and most complete range of polypropylene batteries for divisional meters, for both new construction and renovation. More than 149,000 units manufactured in accordance with the UNE 53943 standard in PP-R, providing a long service life in continuous use. Authorized by the main water companies: Suez Group Spain (Agbar). Aqualia FCC. Aquagest. Seville Municipal Water Company (EMASESA). Authorized by the Directorate of Industry, Energy and Mines of: Valencian Community. Region of Murcia. Community of Madrid. Community of Catalonia.

The NIRON single-layer RP pipe range in SDR 9, series 4 is made of PP-R RP polypropylene and is ideal for plumbing installations. The use of PP-R RP “Raised Pressure” pipe offers a long-term improvement in the mechanical characteristics of systems that transfer fluids at high temperatures. This translates into better performance at elevated temperatures and a reduction in wall thickness, allowing for higher flow rates, lower velocity within the system, and consequently, reduced pressure losses. With Environmental Product Declaration (EPD):
