Valves suitable for Oil & Gas production, processing, transportation, distribution, chemical and petrochemical refining including system isolation, pressure level and flow measurement, instrument drain, chemical injection and sampling for smaller sizes.

Valves suitable for Oil & Gas production, processing, transportation, distribution, chemical and petrochemical refining including system isolation, pressure level and flow measurement, instrument drain, chemical injection and sampling for smaller sizes.

The new generation JBF-M features a more robust structural design and fully meets all latest market design standards and requirements. It is engineered to perform reliably under extreme conditions, including high temperatures, cryogenic environments, and highly abrasive applications—making it the id

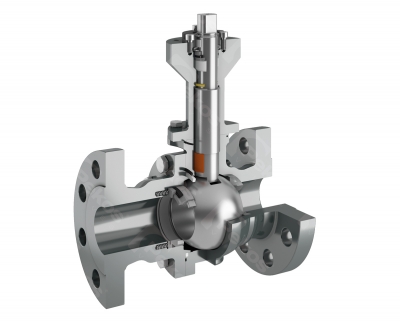

The CQF DIN Series is a 3/4/5-way floating ball valve specifically designed for cryogenic applications. It allows for different ball port configurations with “L”, “T” or “X” options and with isolation at every port. Available with welded, threaded or flanged CL150 and CL300 end connections, this val

The CTR ASME Series is a trunnion mounted ball valve that offers a large range of applications. It features a split body, and uses C-RPTFE seats for maximum chemical compatibility combined with minimum coefficient of friction. It is a bi-directional, single piston effect, zero leakage valve and has

Trunnion mounted ball valves, construction to ASME B16.34 - API6D, 2/3 piece bolted body, split body, side entry, double block & bleed, flanged RF/RTJ to ANSI B16.5, face to face to ANSI B16.10, full/ reduced bore, ISO (5211) top work standardized for actuation, seat leakage rate to ISO 5208 Rate A,

The CCF DIN Series is a cryogenic floating ball valve designed for use in extreme temperatures as low as -196ºC, making it ideal for LNG, LPG, and other applications. It features an advanced unidirectional design with an upstream relief hole to release overpressure safely. The valve is equipped with

The CXF Series is a cryogenic floating ball valve designed for use in extreme temperatures as low as -196ºC, making it ideal for LNG, LPG, and other applications. It features an advanced unidirectional design with an upstream relief hole to release overpressure safely. The valve is equipped with a r

The CTR DIN Series is a trunnion mounted ball valve that offers a large range of applications. It features a split body, and uses C-RPTFE seats for maximum chemical compatibility combined with minimum coefficient of friction. It is a bi-directional, single piston effect, zero leakage valve and has a

Bonney Forge manufactures Double Block and Bleed Valves ( DDB valve) in an extensive range of designs, materials, sizes, pressure classes and end connections that are designed in accordance to ASME B16.34 and where applicable API 6D or BS EN ISO 17292. The valves are fire-safe test approved and inc

Forged trunnion ball valves are an excellent choice for on/off service in large and high pressure applications because the ball is anchored at the top and bottom of the design. Bonney Forge is a trunnion mounted ball valves manufacturer in an extensive range of designs, materials, sizes, pressure cl

JSB Series V-segment valve is the segment ball with V-notch design for both regulating and shut-off services. The high valve capacity with optimum flow characteristics provides the ideal solution in flow control.

The trunnion mounted side entry ball valve is the most popular ball valve design for Oil & Gas application. The ball is held on a fixed vertical axis and is free to rotate around it. Sealing is assured by pressure & spring energized seats. For small sizes, the ball is supported by a trunnion, while

The Over Pressure Protection (OPP) is an Emergency Shut Down (ESD) system that can be applied to any quarter turn equipment, as the ball valve series. It is designed to automatically, without any human intervention, close the valve when a specified pressure is reached, preventing the over fill / ove

The GFH7 Series offers a monoblock floating ball valve design for hydrogen fueling applications. These valves have AED/RGD for extra decompression resistance and double insulation to prevent contamination. GFH’s valves are designed for easy installation and maintenance, with a simple yet robust stru

Side-Entry (split-body) two or three pieces bolted construction, Seat-supported ball, renewable seats, Full or Reduced Bore, Bi-Directional.

Trunnion ball valves have the obturator bounded by trunnions which do not allow axial displacements of the ball itself in the flow direction; line pressure compresses the seat onto the ball, the contact between surfaces generates the valve sealing; trunnion standard construction ensure automatic cav

Special valve constructions to allow easy on-site maintenance and disassembly with quick access to ball and seats for inspection and repair.

The Top Entry ball valve design is characterized by one-piece body construction with top access to all internal components. Top Entry Ball Valves are the preferable solution when it is required to perform in line maintenance and when the reduction of possible leakage path is mandatory. The body can

The DF Series is a process double block & bleed (DBB) floating ball valve with a modular construction. It features double positive isolation with minimal external potential leakage points. This valve is suitable for flow measurement, sampling, chemical injection, and process isolation. Designed acco

The DXF Series is a robust Double Block & Bleed (DBB) floating ball valve with a modular construction. It is available in carbon steel A216 WCB and stainless steel A351 CF3M, offering options to suit different application requirements. The valve features bi-directional sealing with C-RPTFE soft seat

Trunnion Supported Fixed Ball Design, Available in Full or Reduced Bores. Features include Anti-blow-out Stem, Anti-static, Firesafe/Fire-tested, Lockable. Designs conform to API 608, API 6D, BS 5351, and ISO 17292 standards. Body styles include Two-piece and Three-piece. End connections are Flanged

Seat Supported Floating Ball Design, Available in Full or Reduced Bores. Features include Anti-blow-out Stem, Anti-static, Firesafe/Fire-tested, Lockable. Designs conform to API 608, API 6D, BS 5351, and ISO 17292 standards. Body styles include One-piece, Two-piece, and Three-piece. End connections
